Features of the Belt Turn Conveyor

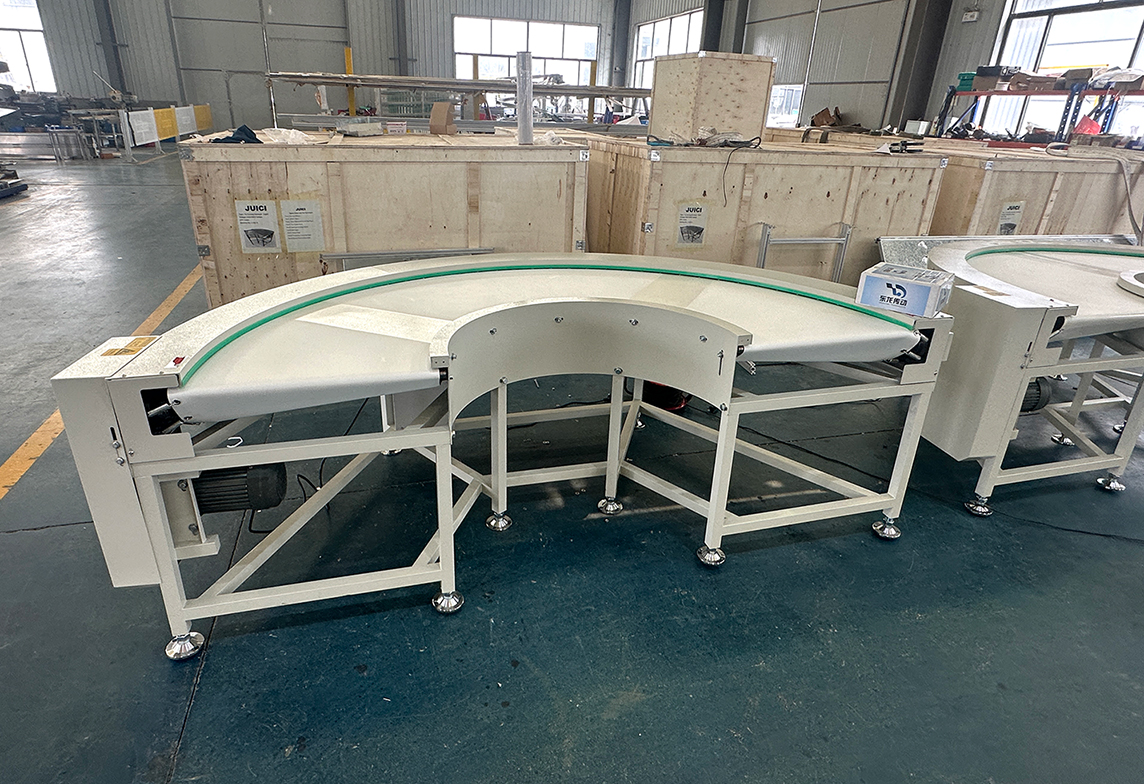

The belt turn conveyor is an automatic conveying equipment specially designed for material turning and conveying. It is mainly composed of an arc-shaped frame, turning rollers, conveyor belt, driving device, tensioning device and guiding mechanism. It can flexibly realize continuous conveying at 90°, 180° and any custom angles without manual material transfer. Through the optimized turning structure design, the equipment solves the problem that linear conveyors cannot realize turning and circulation. It can perfectly connect multiple linear conveyors to form a complete conveying closed loop, adapt to different workshop layout needs, and is a key equipment for realizing material turning and process optimization in automatic production lines. Its conveyor belt is mostly made of wear-resistant materials such as rubber and PVC, and the appropriate thickness and pattern can be selected according to the characteristics of the conveyed materials to ensure that the materials do not slip or deviate during conveying.
Product Features
Smooth Turning and Stable Conveying: Adopting arc-shaped rollers and guide edge design, combined with a precise tension adjustment system, it ensures that the conveyor belt runs stably, does not deviate or slip during turning, and the materials are conveyed without falling or jamming. It can realize continuous and efficient turning conveying to meet the needs of uninterrupted production of the assembly line.
Compact Structure and Space Saving: The machine body adopts an integrated arc design, which does not require additional space for turning. Compared with the traditional corner conveying method, it greatly reduces the floor space, adapts to the layout of small workshop spaces, can be flexibly embedded into the existing production line, and does not require large-scale workshop transformation.
Flexible Adjustment and Strong Adaptability: The turning angle (90°, 180°, etc.), conveying speed and belt width can all be customized on demand. It can adapt to materials of different specifications and types (bulk materials, bagged materials, boxed materials, small finished products, etc.), and can meet both light material conveying and medium-heavy material turning needs.
Efficient Operation and Convenient Maintenance: The driving device adopts an energy-saving motor, which has low operating noise and low energy consumption, and can work continuously for a long time; the machine body has a simple structure, and key components are easy to disassemble and maintain. Daily maintenance only needs to regularly check the tightness of the belt and clean the rollers, with low maintenance cost and short downtime.
Safe, Durable and Adaptable to Multiple Working Conditions: The frame is welded with high-quality steel, which has strong rigidity, stable load-bearing and is not easy to deform; the conveyor belt is wear-resistant, oil-resistant and corrosion-resistant, and can adapt to various complex working conditions such as food workshops, logistics warehouses and industrial workshops. Some models can be equipped with guardrails to improve operational safety.
Product Applications
With the advantages of flexible turning and strong adaptability, the belt turn conveyor is widely used in automatic production lines of various industries. The core application scenarios are as follows:
Logistics and Express Industry: It is mainly used in express sorting centers and logistics warehouses to realize the turning and conveying of packages and express items, connect scanning, sorting, packaging and other processes, optimize the warehouse layout, and improve sorting efficiency. It is suitable for packages, cartons and other materials of different sizes.
Food and Beverage Industry: It is suitable for automatic production lines of food and beverages, and is used for the turning and conveying of bottled, boxed and bagged food (such as beverages, snacks, dairy products). The machine body can be made of food-grade materials, without dead corners for hygiene, meeting the food safety production standards, and can connect filling, labeling, cartoning and other processes.
Packaging Industry: It is used in various product packaging assembly lines to realize the turning and circulation of packaging boxes and bags. Cooperating with packaging machines, capping machines, labeling machines and other equipment, it completes the whole product packaging process, adapts to packaging parts of different specifications, and improves the continuity of the packaging assembly line.
Electronics and Light Industry: It is suitable for the turning and conveying of light products such as electronic components, small household appliances and daily necessities. It runs stably with low noise, which can avoid damage to materials during turning, adapts to the conveying needs of precision electronic components, and connects assembly, testing, packaging and other processes.
Pharmaceutical Industry: It is used for the turning and conveying of medicines and medical devices. The machine body is made of hygienic materials, which can realize sterile cleaning, adapts to the strict hygiene standards of the pharmaceutical industry, connects pharmaceutical, packaging, testing and other processes, and ensures the cleanliness and safety of the material conveying process.
